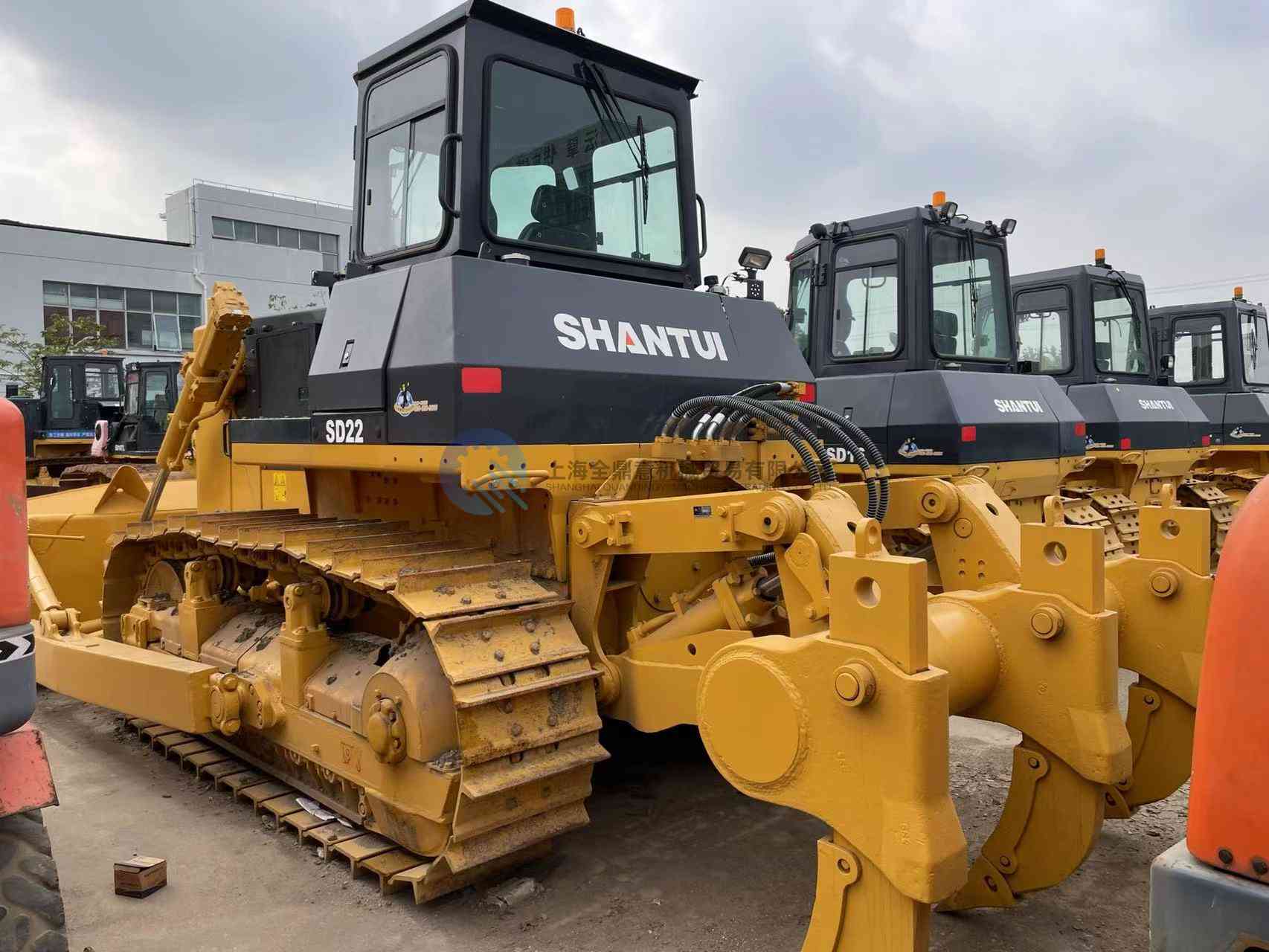

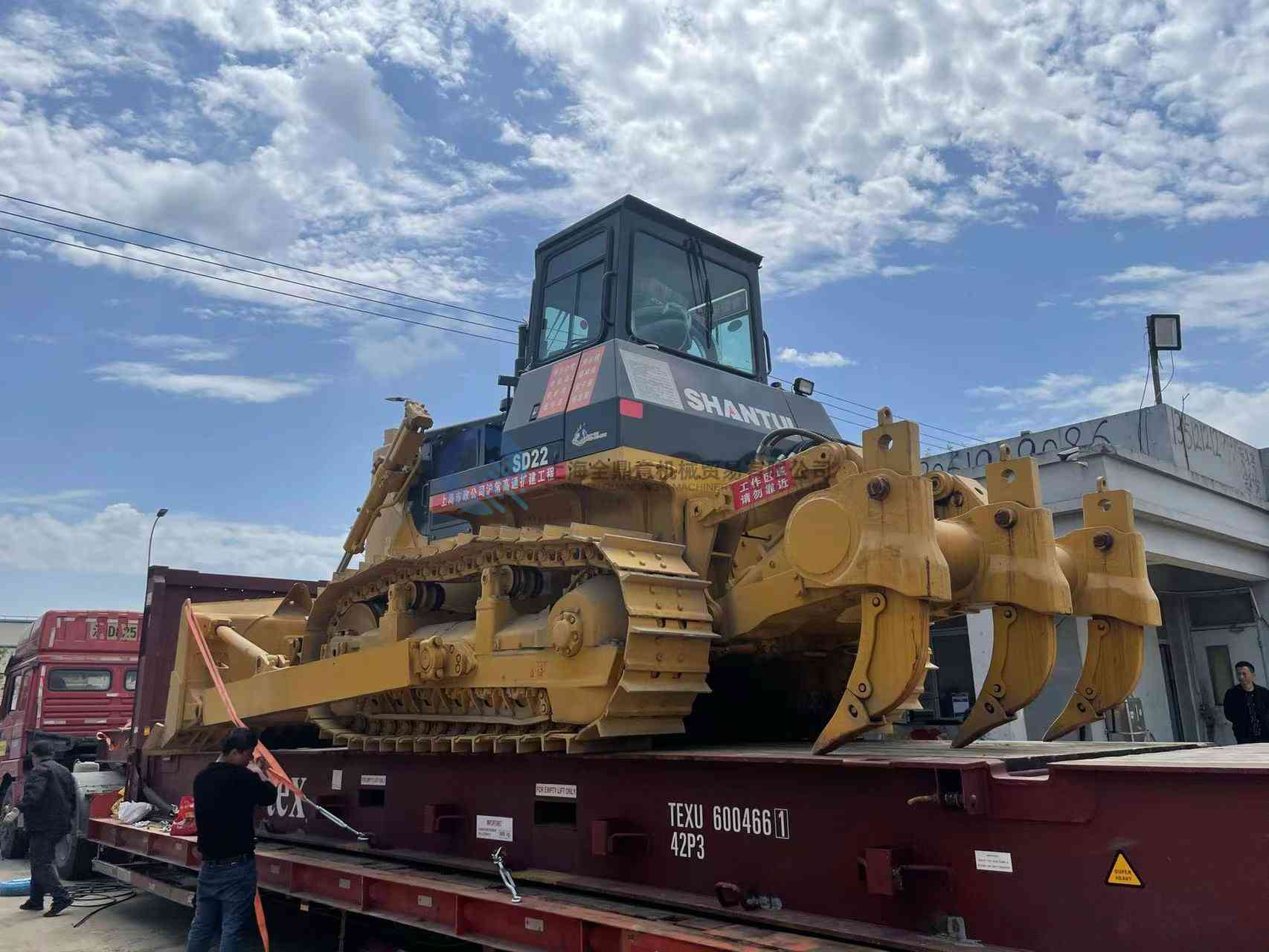

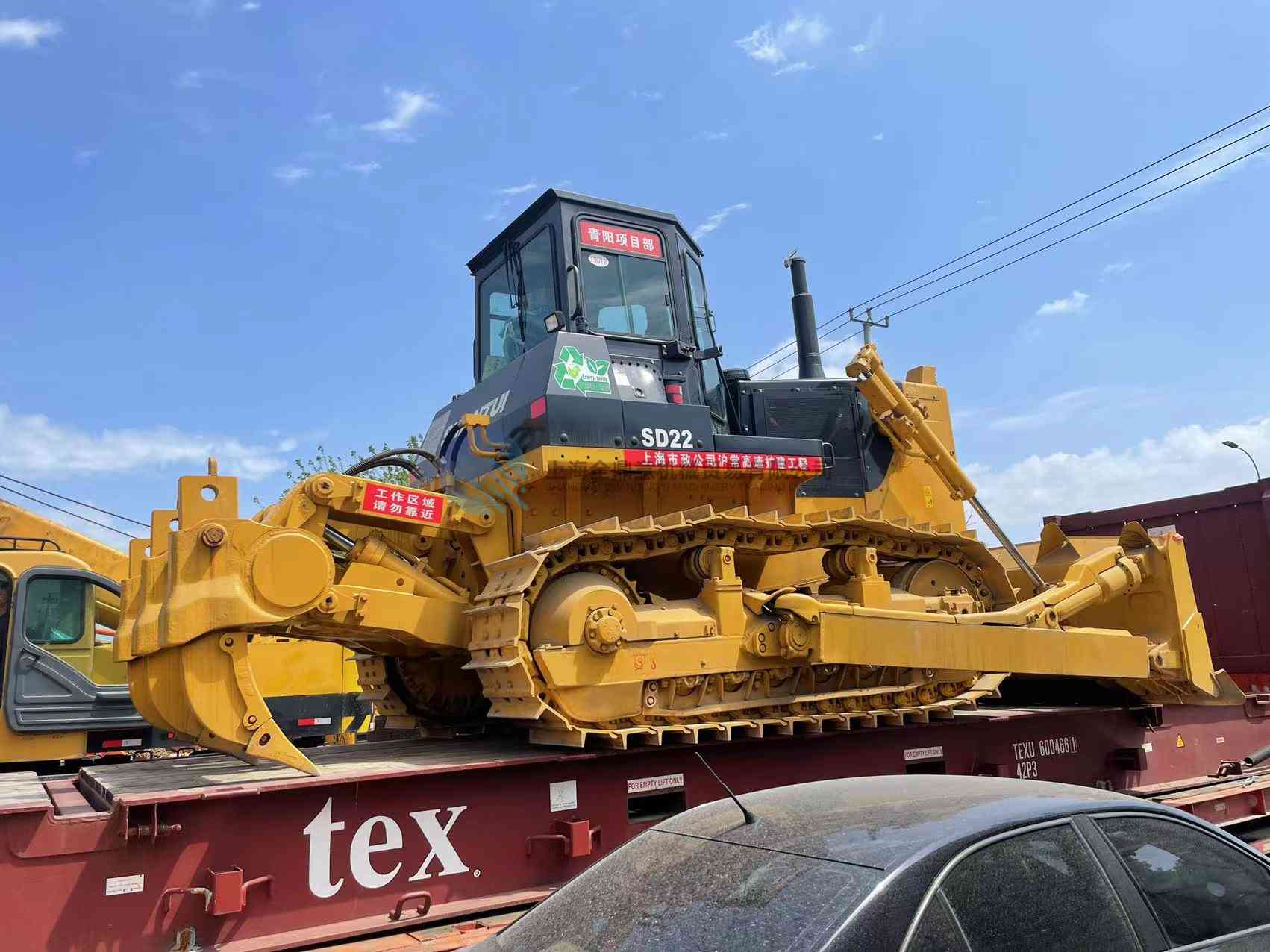

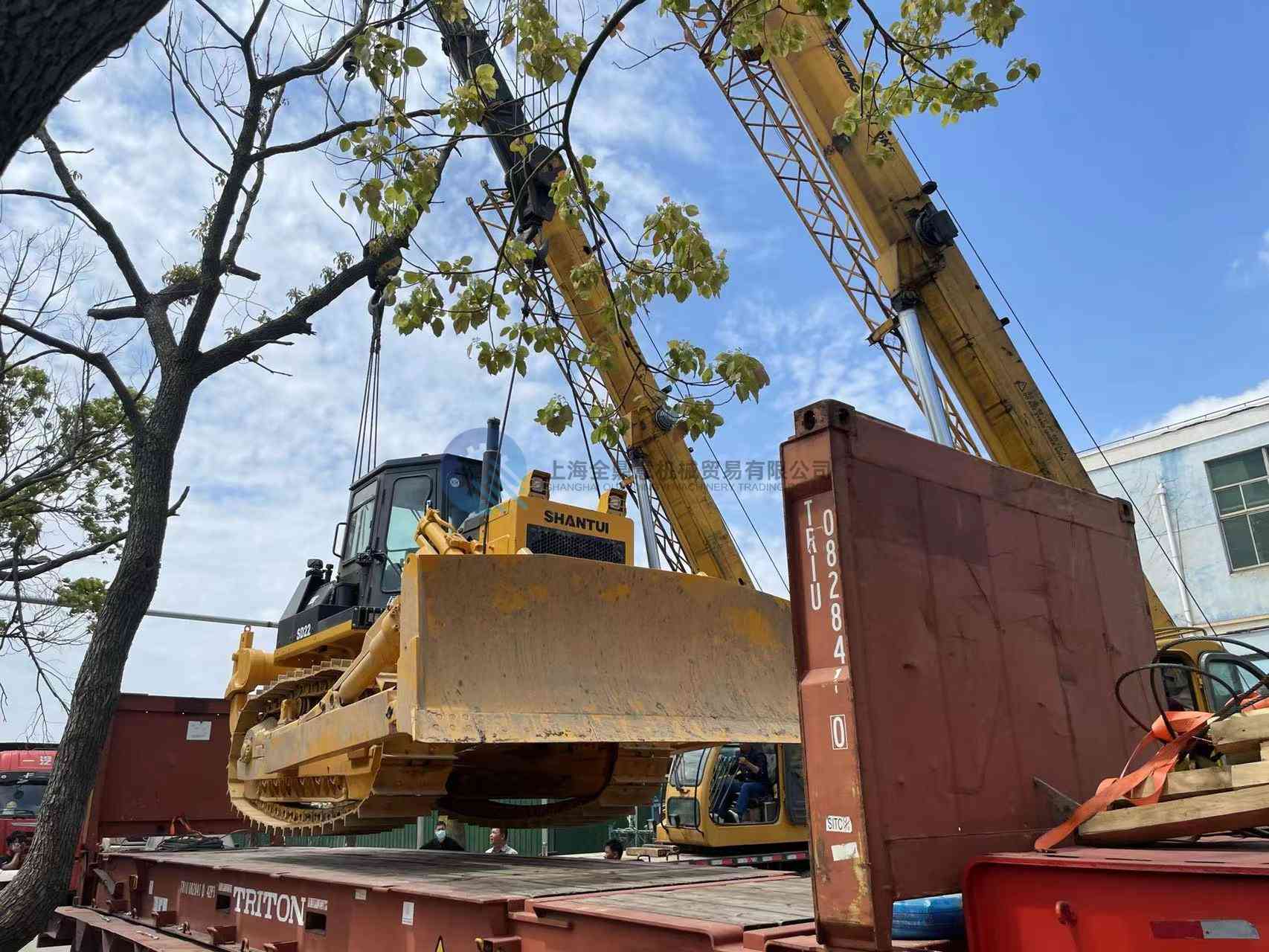

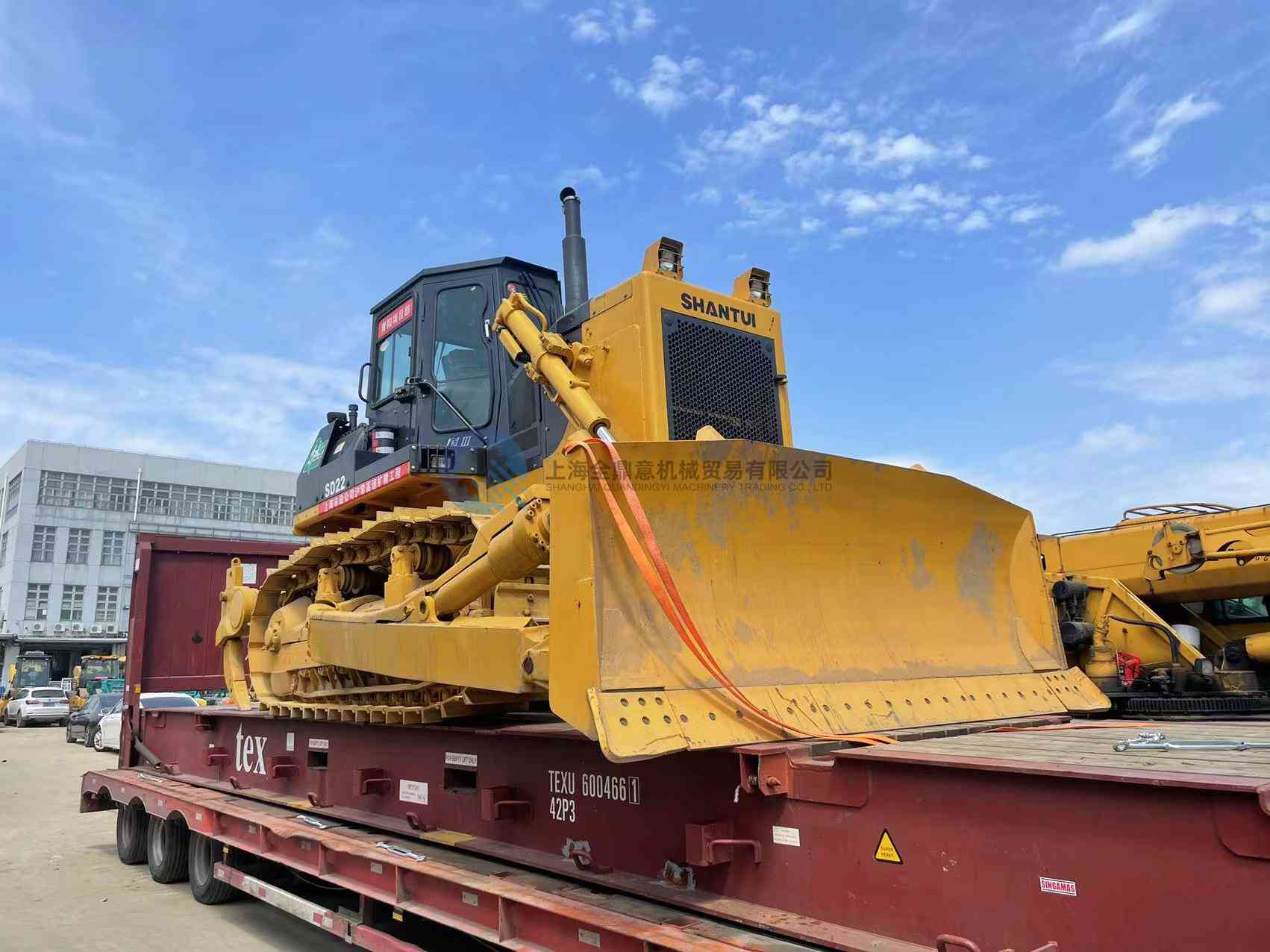

Shantui SD22 bulldozer

Fob Price: / Unit

Product Description

Parameter name	SD22 (Standard version)
Performance parameters
Operating weight (Kg)	23450
Ground pressure (kPa)	66

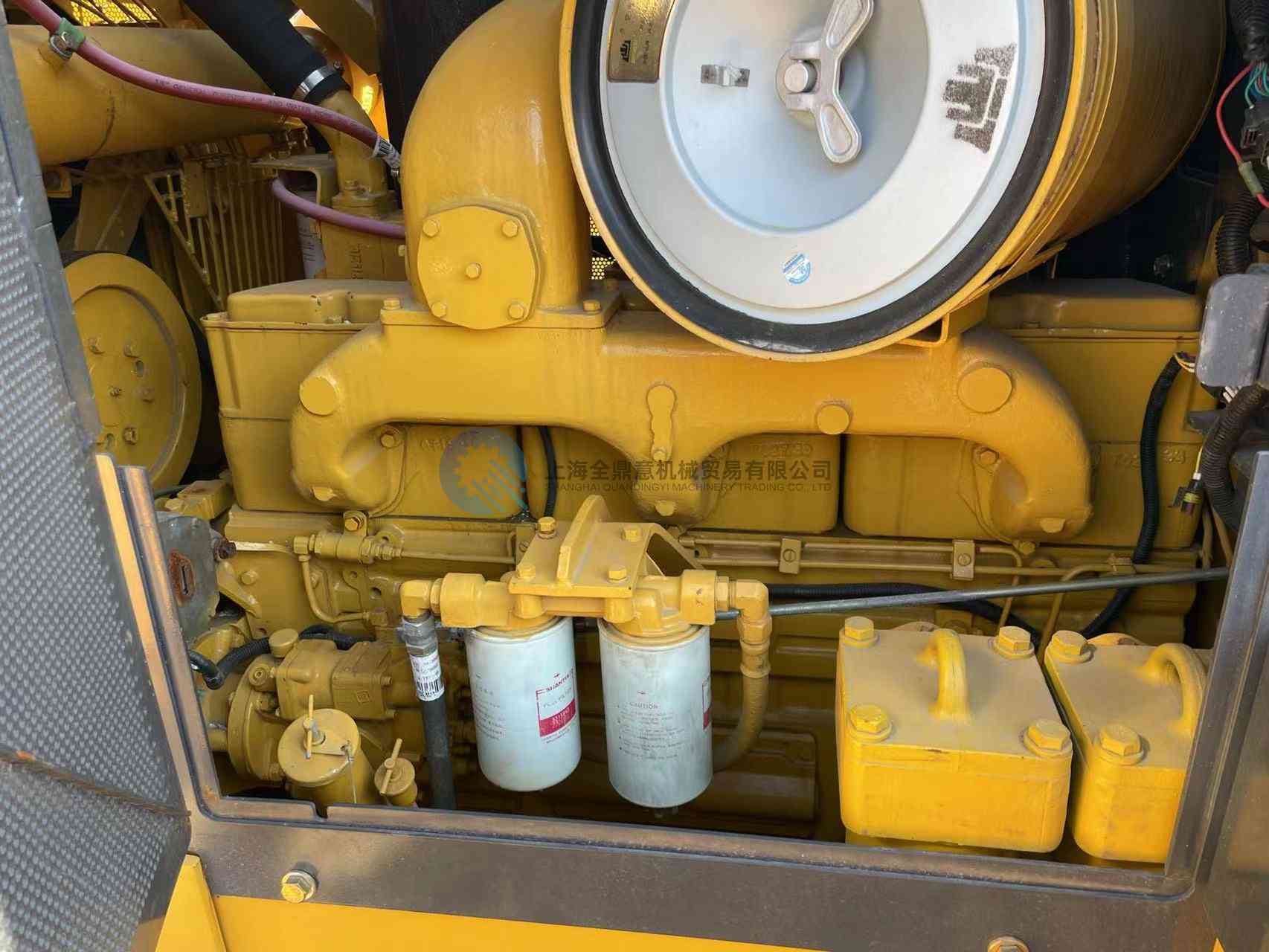

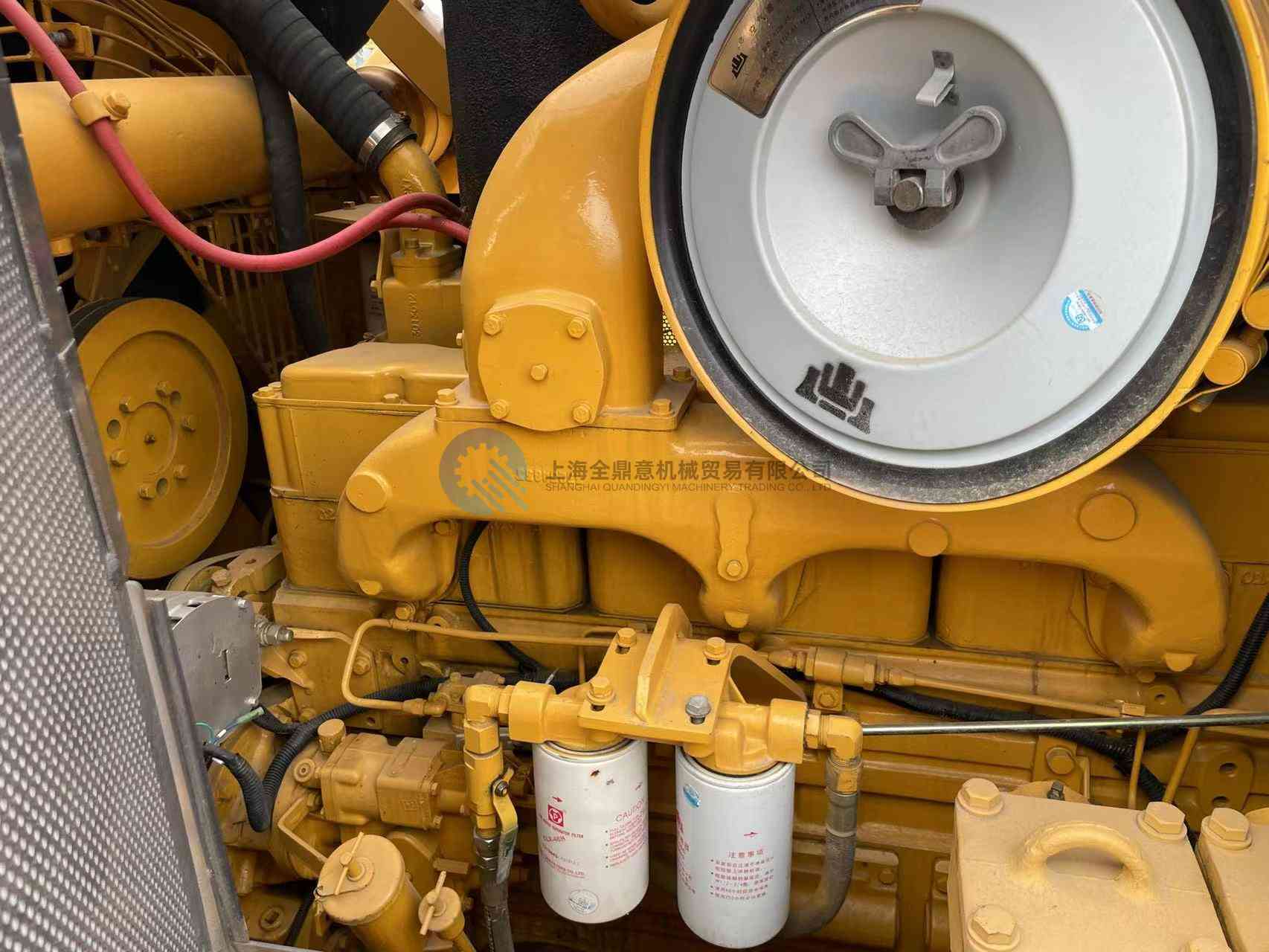

Engine
Engine model	WP12/QSNT-C235
Rated power/rated speed (kW/rpm)	175/1800
Overall dimensions
Overall dimensions of machine (mm)	549537253402

TAG:

Parameter name	SD22 (Standard version)	SD22C (Coal version)	SD22W (Rock version)	SD22F (Forestry version)	SD22D (Desert version)
Performance parameters
Operating weight (Kg)	23450	24000	23600	24700	24600
Ground pressure (kPa)	66	57.5	66	64	56
Engine
Engine model	WP12/QSNT-C235	WP12/QSNT-C235	QSNT-C235	QSNT-C235	QSNT-C235
Rated power/rated speed (kW/rpm)	175/1800	175/1800	175/1800	175/1800	175/1800
Overall dimensions
Overall dimensions of machine (mm)	549537253402	582042003402	549537253402	549537253402	549537253402
Driving performance
Forward speed (km/h)	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2
Reversing speed (km/h)	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2
Chassis System
Center distance of track (mm)	2000	2000	2000	2000	2000
Width of track shoes (mm)	560/610/660	660	560/610/660	610/660	660
Ground length(mm)	2730	2730	2730	2730	3050
Tank capacity
Fuel tank (L)	450	450	450	450	450
Working device
Blade type	Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade	Coal blade	Rock straight tilting blade, rock angle blade, rock U-blade, and rock semi-U blade	Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade	Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade
Digging depth (mm)	540	538	540	540	540
Ripper type	Single-shank three-shank	Single-shank three-shank	Single-shank three-shank	Single-shank three-shank	Single-shank three-shank
Ripping depth (mm)	695 (Single-shank) and 666 (Three-shank)	695 (Single-shank) and 666 (Three-shank)	695 (Single-shank) and 666 (Three-shank)	695 (Single-shank) and 666 (Three-shank)	695 (Single-shank) and 666 (Three-shank)
